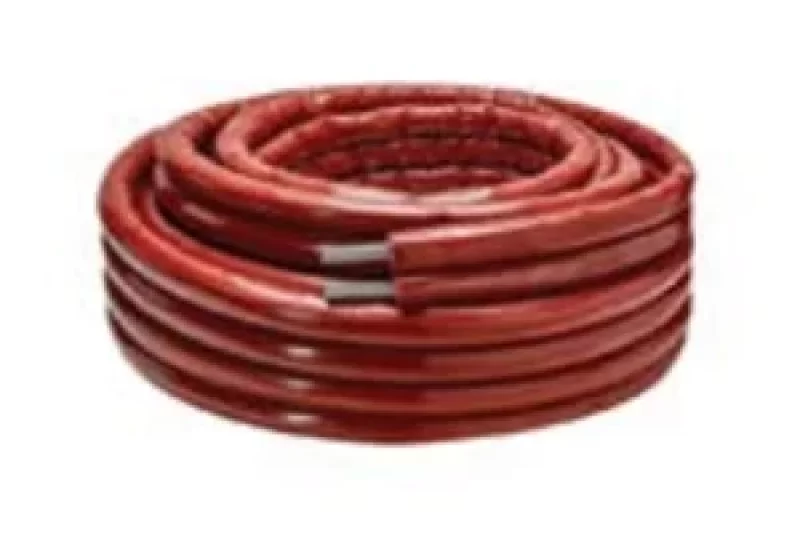

OPEX solar systems for solar power plants are based on PLT-CSST corrugated flexible pipes made of AISI 304 stainless steel (designation: 1.4301 – X5CrNi18-10) with a thickness of 0.3 mm and pre-insulation.
The system features EPDM closed-cell insulation with protective cladding, ensuring excellent durability and thermal performance. The insulation is protected by specialized films that provide high resistance to UV radiation and mechanical wear.
A special flexible expanded polyurethane formula allows the pipe to operate continuously at temperatures of up to 150 °C. The thermal insulation layer is covered with aluminum, which is further protected by a UV-resistant and abrasion-resistant film, ensuring long-term reliability in demanding environments.
For maximum installation flexibility, OPEX systems offer four different connection solutions:
Flange System
Press-Fitting System
Double O-Ring System
Quick Connect System
These connection options allow reliable integration between OPEX components as well as with other systems.
The connecting threads of the components comply with international standards and are equipped with high-temperature-resistant sealing elements (gaskets) designed to withstand the fluids and operating conditions typical of solar thermal power plants.
